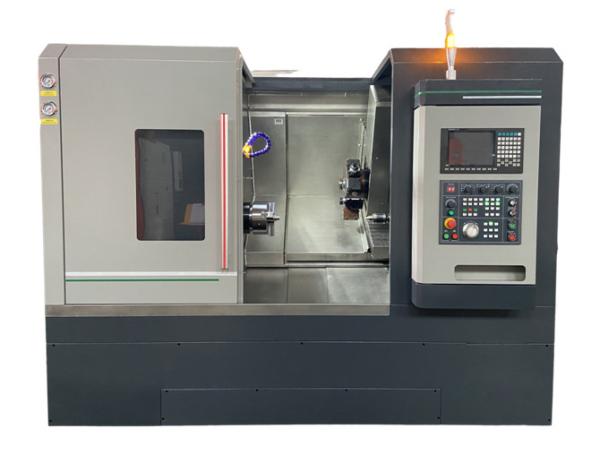

    Metal Processing CNC Center Grinding Milling Machine 2.2KW

    Ask Lasest Price
    Brand Name : GNG
    Model Number : 520TMC
    Price : 45000~75000
    Payment Terms : T/T
    Supply Ability : 100sets/month
    Delivery Time : 30 ~45days
    • Product Details
    • Company Profile

    Metal Processing CNC Center Grinding Milling Machine 2.2KW

    Metal Processing CNC Center Grinding Milling Machine

    Specifications
    CNC-520TMC machine tool parameters

    Technical ParametersStandard configuration
    projectnameparameterAccessory Name

    Origin

    Brand

    Remarks

    bed frameThe bed body and base high -quality cast iron couplet is one, 30 ° oblique bed bodynumerical control system

    Japan

    FANUC OI-TF5 packs
    Processing rangeThe maximum rotation diameter of the bed600mmspindle servo

    Japan

    FANUC
    Maximum processing diameter320mmfeed axis servo

    Japan

    FANUC
    Maximum processing diameter320mmturret servo

    Joint ventureTAIDA/JUCHUAN
    Maximum processing length480mmMechanical spindle

    Taiwan

    JIANCHUN
    The maximum rotten pore diameterФ51screw bearing

    Japan

    NACHI
      roller linear guide

    Taiwan

    YINTAI




    Performance
    X -axis maximum itinerary220mmball screw

    Taiwan

    YINTAI
    Z -axis maximum itinerary520mmServo power turret

    Taiwan

    SWIFT
    Y -axis maximum itinerary±45Hollow rotary cylinder

    Joint ventureZHONGYI/Coptic8 inch

    X/Z/Y axis fast movement rate30minhollow hydraulic chuck

    Taiwan

    JIAHE8 inch

    X/Z screw diameter/thread distanceX:4010 Z:32/10Hydraulic system

    Joint ventureJIAMI
    X/Z linear guide width45mmautomatic lubrication system

    Joint ventureYUPU
    X -axis servic motorβ12(With brake
    )
    Cooling water pump

    Joint ventureWANQIAN
    Z axis serviced motorβ12Electrical components

    France




    Y -axis servic motorβ12(With brake
    )

    Servo knife tower motor3N.M
    Dynamic headerβ12
    Accuracy OGE ODynamic header±0.003mm
    X, Z axis duplicate accuracy±0.003mm
    TailTail sleeve cone hole/diameterMohs#5
    Tailing mobile itinerary25~525random file

    Tailing pressure range5~25paFactory certificate * 1 copy
    System Operating Instructions * 1 copy
    System Programming Manual * 1 copy
    Tailstock movement mode

    Programmable hydraulic movement


    Spindle
    Spindle nose typeA2-6
    Spindle through hole diameter

    Φ66
    Maximum spindle speed

    4500rpm
    Spindle motor power

    11kw

    Tool
    Servo power turret

    BMT55/12T
    Cutter head size

    330
    Handle specifications

    25*25
    Boring bar

    Ф32
    0 degree side milling head (1)

    ER32/3000 Turn


    90 degree side milling head (1)

    ER32/3000 Turn


    otherTotal capacitance

    26KW
    net weight of machine tool

    About 4000kg
    Machine size (length * width * height)

    2800*1700*2000
    Metal Processing CNC Center Grinding Milling Machine 2.2KWMetal Processing CNC Center Grinding Milling Machine 2.2KWMetal Processing CNC Center Grinding Milling Machine 2.2KWMetal Processing CNC Center Grinding Milling Machine 2.2KW

    There may be errors between this product description, data and reality, if there is any change will be notified separately!

    Other optional machine tools (subject to additional costs)
    One, Optional increase chain chip removal machine;
    Two,Optional automatic material receiving device;



    FAQ:
    Question 1: what is your target market?
    A1: we are now focusing on Europe and North America.

    Question 2: what is the biggest advantage over competitors?
    A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.

    Question 3: what about payment and delivery time?
    A3: delivery time: within 30 days after receiving the advance payment.
    Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)

    Question 4: can I have some samples?
    A4: Yes, we are honored to provide you with samples for quality inspection.

    Q5: how is your factory doing in quality control?
    A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
