    Horizontal CNC Metal Lathe

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 10sets/month
    Price : USD 1000-39000
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

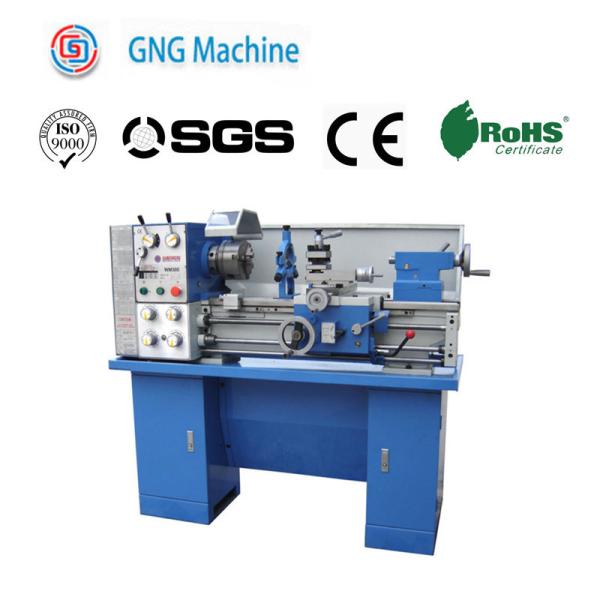

    Horizontal CNC Metal Lathe

    With Cover Metal Machining Bench Lathe

    Min. Order Quantity: 1 Set/Sets
    Supply Ability: 300 Set/Sets per Month
    Port: Qingdao/Shanghai
    Payment Terms: L/C,T/T

    Quick Details
    Condition: New
    Type: Horizontal
    CNC or Not: Normal
    Automatic Grade: Manual
    Max. Swing Diameter: 300mm
    Place of Origin: Shandong, China (Mainland)
    Brand Name: Weihao
    Model Number: CQ6230D
    Voltage: 380v
    Power(W): 1100w
    Dimension(L*W*H): 173x75x151cm
    Weight: 550kgs
    Certification: CE
    After-sales Service Provided: No overseas service provided
    lathe machine in blue color: metal lathe machine can be all colour according customer like universal lathe:
    Color: blue

    Packaging & Delivery
    Packaging Details: packed in plywood package. the customer can requested use te Carton Box or in wood case
    Delivery Detail: 30-45days

    Specifications
    Cheaper price lathe /lathe machine
    metal Bench lathe/ Hobby lathe machine/single phase lathe CQ6230 made for modulers' DIY
    ModelCQ6230D

    Max. swing over bed300mm
    Max. swing over cross slide178mm
    Max. swing in gap430mm
    Centers distance750/914mm
    Spindle bore38mm
    Taper of spindle boreMTNO. 5
    Spindle speeds65-1400rpm (65-1810rpm optional)
    Longitudinal feed per revolution of spindle(32kinds)0.052-1.392mm/r0.002"
    Cross feed per revolution of spidle(32kinds)0.014-0.3448mm/r0.0007"
    Metric thread can be cut(26kinds)0.4-7mm
    Inch threads can be cut (34kinds)4-56TPI
    Taper of tailstockquill sleeveMTNO. 3
    Power of motor1.1KW / 1.5KW
    Net weight550kgs
