    Electric CNC Metal Lathe Mt6 High Precision Cnc Lathe With Program Control System

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 10sets/month
    Price : USD 1000-39000
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

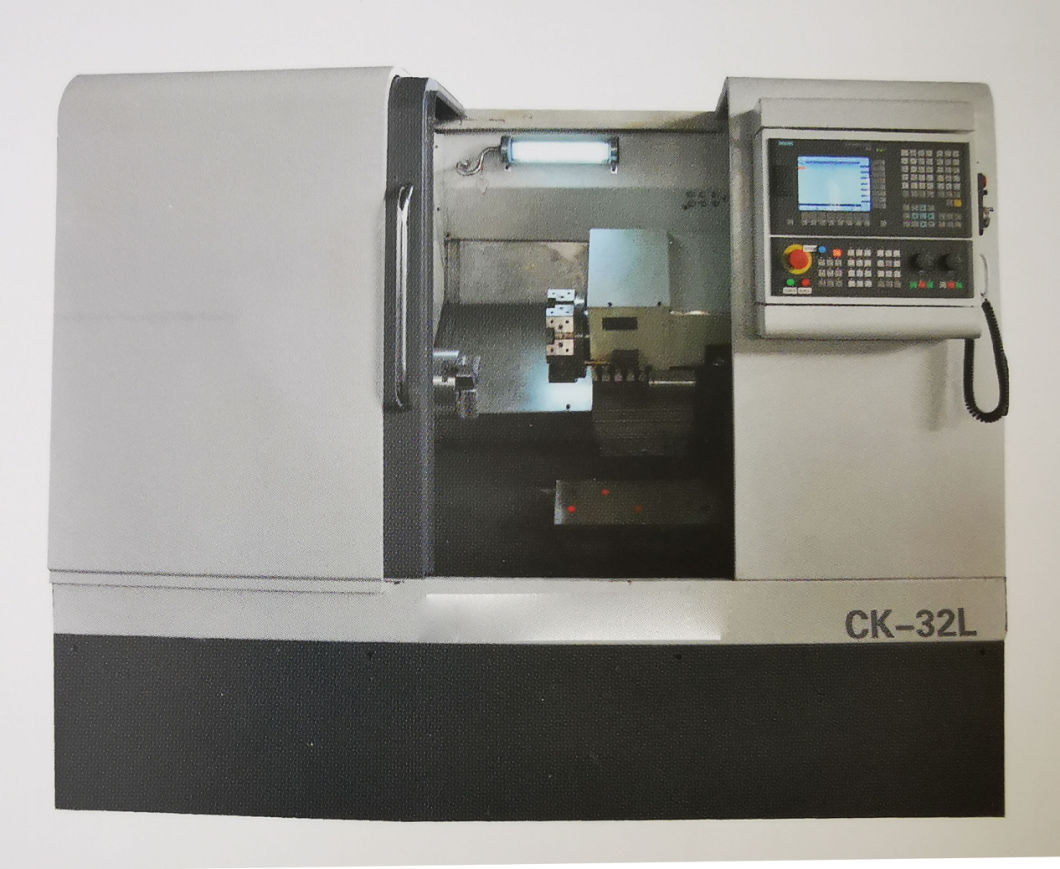

    Electric CNC Metal Lathe Mt6 High Precision Cnc Lathe With Program Control System

    CNC Center Professional CNC Lather (With Slanting Rail 45&Deg;)

    Min.Order Quantity: 1 Set/Sets
    Supply Ability: 200 Set/Sets per Month
    Port: Qingdao/Shanghai
    Payment Terms: T/T

    Quick Details
    Condition: New
    CNC or Not: CNC
    Automatic Grade: Automatic
    Place of Origin: Shandong, China (Mainland)
    Brand Name: Weihao
    Model Number: CK32L
    Certification: CE
    After-sales Service Provided: No overseas service provided

    Packaging & Delivery
    Delivery Detail: 30-45days


    ItemsSpecifications
    CK-32L/36LCK-40LCK-50L
    Max.swing over bedΦ320mm /Φ360mmΦ400mmΦ500mm
    Max.swing over carriageΦ180mm / Φ210mmΦ260mmΦ360mm
    Max.cutting length500mm520mm750mm
    Rail width284mm320mm381mm
    Spindle noseA2-5A2-6A2-8
    Spindle boreΦ56mmΦ62mmΦ90mm
    Taper of Spindle boreMT6MT6 or Φ70mm,1:20Φ100mm,1:20
    Chuck6"8"10"
    Range of spindle speed150-4500rmp100-3500rpm150-3000rpm
    X/Z a-xis travel210/500mm240/550mm260/750mm
    X/Z rapid speed15/18m/min15/18m/min10/15m/min
    X/Z screw2510/3210mm3208/4010mm2510/4010mm
    X/Z linear guide-way25/35mm35/45mm30/45mm
    Hydralldic turret6 or 88 or 128 or 12
    Max.section of tool20x20mm25x25mm25x25mm
    Stroke of tailstock sleeve80mm80mm120mm
    Diameter/Hole of tailstock sleeveΦ60mm/MT4Φ75mm/MT5Φ90mm/MT5
    Main moror power4kw/5.5kw7.5kw11kw or 15kw
    Coolant pump power250w250w250w
    Overall dimensions (LxWxH)2570x1550x1750mm2800x1800x1800mm3100x1880x1900mm
    Packing size (LxWxH)3000x1750x2100mm3100x2000x2100mm3300x2050x2150mm
    Net weight2000kg / 2200kg2900kg4300kg
    Groos weight2250kg / 2450kg3300kg4700kg

    CNC Center Professional CNC Lather (with slanting rail 45°)
    CNC Center Professional CNC Lather (with slanting rail 45°)

    CNC Center Professional CNC Lather (with slanting rail 45°)

    CNC Center Professional CNC Lather (with slanting rail 45°)
    CNC Center Professional CNC Lather (with slanting rail 45°)
    CNC Lathe Machine Characteristics:

    CNC machine tool is the abbreviation of digital control machine tool, which is an automatic machine tool with program control system. The control system can logically process and decode the program with control code or other symbolic instructions to cause the machine to operate and machine the part.

    Compared with ordinary machine tools, CNC machine tools have the following characteristics:
    1. High processing precision and stable processing quality;
    Multi-coordinate linkage can be performed to process parts with complex shapes;
    2. When the machined parts are changed, generally only need to change the NC program, which can save production preparation time;
    3. The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (usually 3~5 times of ordinary machine tools);
    4. The degree of automation of the machine tool is high, which can reduce the labor intensity;
    5. Widening high stability bed
    6.Two gear spindle speed, stepless in gear
    7. Wider layor board
    8. Intergrated automatic lubrication system.

    Application:
    CNC lathes are one of the most widely used CNC machine tools. The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece, and could also turn various threads, circle arc, circle cone, inside and outside surface of revolved body. and can be used for grooving, drilling, reaming and reaming. Holes and pupils, etc.This machine is widely used in sanitary, value, electrical appliance, instrument, automobile, motor cycle, bearing and so on.
