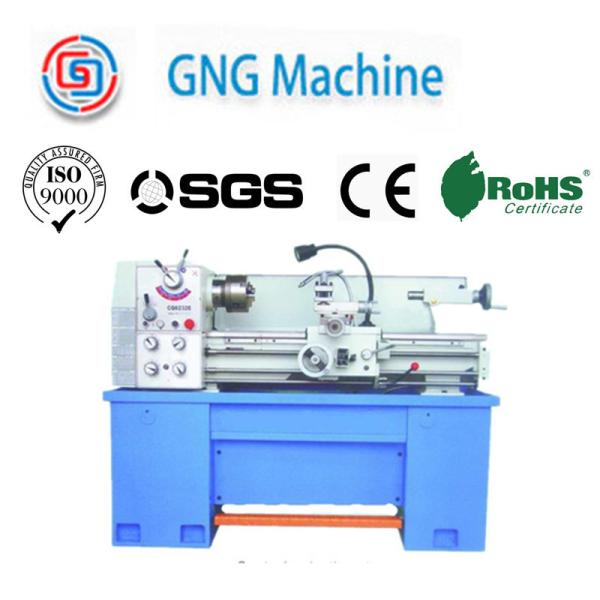

Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe

    Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers

    Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers
    • Buy cheap Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe from wholesalers

    Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 10sets/month
    Price : USD 1000-39000
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Cq6232e CNC Metal Lathe High Speed Anti Vibration Metal Precision Lathe

    Cq6232e High Speed Metal Precision Lathe

    Specifications
    CQ6232E Metal Lathe MACHINE
    Max. swing over bed 320 mm
    Max. swing over gap 470 mm
    Max.turning dia.over cross slide 198mm


    CQ6232E Metal Gear-head Lathe Machine

    Description
    CQ6232Ex880 / CQ6232Ex1000
    Max. swing over bed320 mm
    Max. swing over gap470 mm
    Max.turning dia.over cross slide198 mm
    Max.length to be turned880 mm / 1000 mm
    Speed steps8
    Speed range70~2000 RPM
    Spindle bore dia38 mm
    Taper of spindle boreMT No.5
    Longitudinal0.079~1.291
    Transverse0.017~0.276
    Metric threads0.4~7
    Whitworth threads4~60
    Cross slide travel160 mm
    Top slide travel76 mm
    Swiveling angle of turret± 45 °
    Distance from the tool bearing surface to centerline18 mm
    Movement of tailstock quill100 mm
    Taper of tailstock quill boreMT No.3
    Power of main drive motor1.1 or 1.5KW
    Packing size (1 package) <LxWxH>168x75x140cm / 185x75x140cm
    Gross weight (kg)560 / 600
    Packing size (3 packages) <LxWxH>168x74x75cm / 185x74x75cm
    69x40x37cm 69x40x30cm
    Gross weight (kg)490/ 30/ 27/530/30/ 27
    Cq6232e High Speed Metal Precision Lathe
    Cq6232e High Speed Metal Precision Lathe


    Cq6232e High Speed Metal Precision Lathe
    Cq6232e High Speed Metal Precision Lathe
    Cq6232e High Speed Metal Precision Lathe
    Cq6232e High Speed Metal Precision Lathe
    Cq6232e High Speed Metal Precision Lathe
