    80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 10sets/month
    Price : USD 1000-39000
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

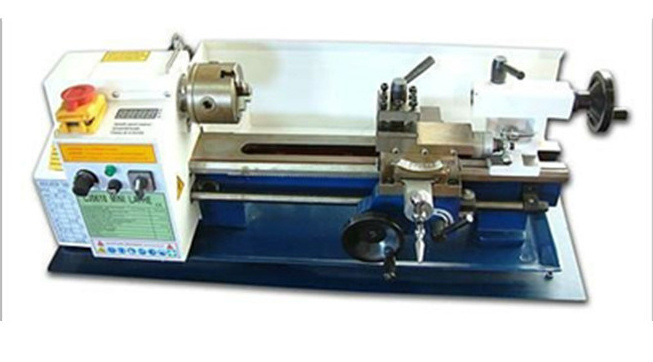

    Mini Engingeers Hobby Metal Bench Lathe

    Specifications

    *Spindle speed readout
    *High-power DC motor
    *Variable speed
    *Induction harden bedway
    *Imported speed control uni
    Technical spec.mini engingeers lathe CJ0618A
    Distance between centers200/300/350mm
    Swing over bed180mm
    Swing over cross slide110mm
    Spindle taperMT3
    Tailstock taperMT2
    Chuck diameter80mm
    Spindle bore20mm
    Cross slide travel65mm
    Tool slide travel35mm
    Range of metric threads0.5-2.5mm
    Range of imperial threads12-52TPI
    Spindle accuracy0.01mm
    Spindle speed50-2500/100-2500RPM
    Power of motor400W/550W
    Voltage/Frequency230V/50Hz or 120V/60Hz
    Net weight35/38/40kg
    Gross Weight38/42/45kg
    Packing size660/760/810x310x320mm
    Product featues*This precision mini lathe is designed is to pretorm various types of processing jobs.Counter turming,drilling,threading and cutting jobs on materials made up of round bar and bar maerials can be performed with this machine can be used in areas such as mini precision parts processing,sample processing and modeling works.
    *This machine is DC motor drived.
    *CJ0618A speed readout mini lathe-spindle speed is inflnltely variable from 50-2500RPM*The feed speed can be adjusted according to the requirement of different workpieces.
