QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

    Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers

    Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers
    • Buy cheap QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine from wholesalers

    QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

    Ask Lasest Price
    Certification : CE, ISO 9001
    Price : USD 1000-39000
    Payment Terms : T/T
    Supply Ability : 300/Per Month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

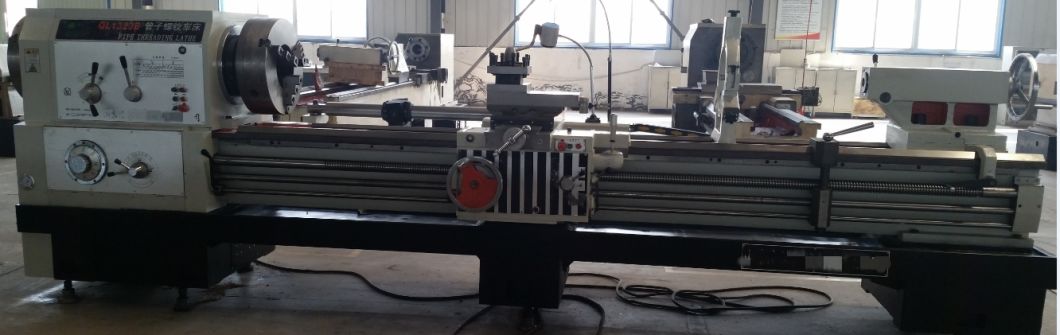

    QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

    Heavy Duty Metal Pipe Thread Machining Lathe

    Heavy Duty Metal Pipe Thread Machining Lathe QL1320
    Specification:
    Max. swing over bed: Φ630mm
    Max. swing over carriage: Φ350mm
    Max. diameter of turning pipe: Φ50--200mm
    Max. workpiece length :1500mm
    Max. traverse of carriage :360mm
    Max.working length of taper attachment :750mm
    Width of bed :550mm
    Hole through spindle :205mm
    Range of spindle speed change: 18-440rpm
    2 range change speed ,
    in range speed change averable 2 ,
    2 pcs Chuck mm Φ520
    4 jaws chuck
    Range and number of metric thread :1-15mm 21 kinds
    Range and number of t.p.i Inch thread : 1-14tpi 26kinds
    Work precision mm : 0.01
    Cylinder degree: 0.030/300
    Flatness: 0.025/Φ300
    Surface roughness (steel piece ): Ra1.6 surface roughness
    Diameter of tailstock spindle : Φ100mm
    Tailstock travel :250mm
    Spindle taper: M5
    Power of main motor: 11kW
    Length×Width×Height :3300×1450×1500mm
    Net weight : 4.5T

    Heavy Duty Metal Pipe Thread Machining Lathe
    Heavy Duty Metal Pipe Thread Machining Lathe



    Heavy Duty Metal Pipe Thread Machining Lathe
    Heavy Duty Metal Pipe Thread Machining Lathe
    Heavy Duty Metal Pipe Thread Machining Lathe
    Heavy Duty Metal Pipe Thread Machining Lathe
    Heavy Duty Metal Pipe Thread Machining Lathe





    Quality QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine for sale
