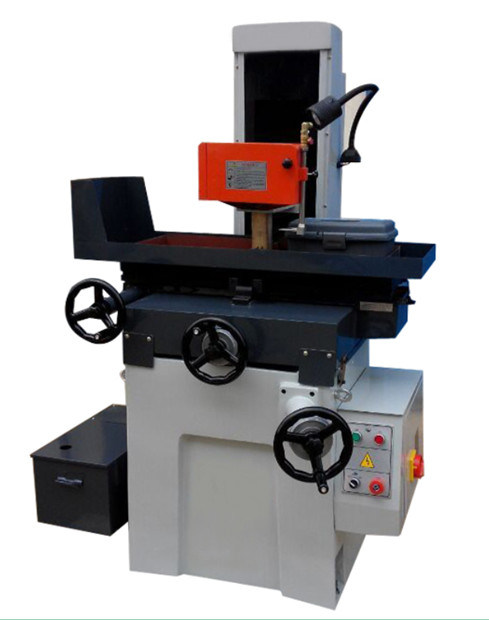

Characteristics of machine tools:
Based on manual surface grinder, it covert the longitudinal and
vertical machine to fully automatic The bidirectional friction
electronic clutch, simple and reliable structure, clutch reversing
process has no impact, no noise, safe commutation 5000000 times;
the electric control part with electronic switching frequency
switching, The service life 10 times longer than the relay control,
simple operation, sensitive, infinitely variable; large output
torque, low noise, Safe and reliable. Power supply use a number of
mechanical and electrical protection function which is safe
voltage, Energy saving, power saving, power consumption per class
(calculated according to 8 hours) is only 0.6.When the manual
grinding is working,Before and after the workbench's movement, in
and out, around the reversing are automatic operation, greatly
improving the production's efficiency and the surface finish,
suitable scope that from the original single, small batch to mass
batch.
| Model | MDS1022 |
| Bench | Max.workpiece to be Ground (L×W×H) (×) | mm | 540×250 |
| Maximum travel of table (L × W) (×) | mm | 560×260 |
| Table maximum cutting area (L × W) (×) | mm | 540×250 |
| Number of T -Slot T (×) | mm | 1×14 |
| The grinding head | Distance From Table Surface To Spindle Center | m | 450 |
| Wheel Size(dia×width×bore) (WA46K5V) (××) | mm | ø200×20×ø31.75 |
| Spindle speeds (50HZ) | r/m | 2850 |
| The amount of feed | Table longitudinal (left and right) speed (stepless) ()() | /min | 3--20 |
| Table horizontal (before and after) the amount of feed () | Continuous (variable speed) () | m/min | 150 |
| Intermittent (stepless) () | m/ | 0-5 |
| The handwheel rotates | mm | 2.5 |
| Hand wheel each grid | mm | 0.02 |
| Vertical (up and down) feed wheel feed () | The handwheel rotates | mm | 1.25 |
| Hand wheel each grid | mm | 0.01 |
| Reversing feeder | The total input power | W | 150 |
| X- feeder output speed. X- | /min | 0--225 |
| X- feeder size X- | m | 280×130×120 |
| Y- feeder output speed. Y- | /min | 0--120 |
| Y- feeder size M Y- | m | 280×130×120 |
| Motor power | Spindle motor | kw | 1.5 |
| Cooling motor | kw | 0.4 |
| Working precision | The machined surface of the base of parallelism | m | 300/0.005 |
| Surface Roughness | μm | Ra0.32 |
| Weight of machine | Net | kg | 880 |
| Cross | kg | 980 |
| Packing Size (L×W×H) (××) | m | 1780×1240×1980 |
