Column Moving Surface Grinding Equipment

    Buy cheap Column Moving Surface Grinding Equipment from wholesalers

    Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers
    • Buy cheap Column Moving Surface Grinding Equipment from wholesalers

    Column Moving Surface Grinding Equipment

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 10sets/month
    Price : USD 2000-50500
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Column Moving Surface Grinding Equipment

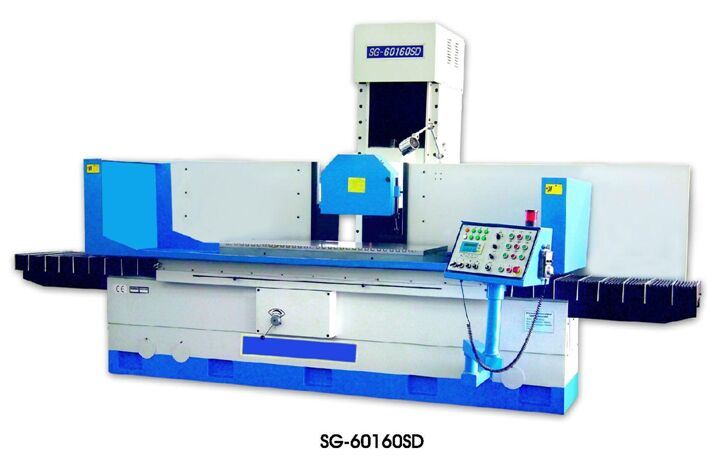

    CNC Surface Machine/Column Moving Surface Grinding Equipment

    Company Info.

    Basic Info.

    Model NO.
    SG80220SD
    Precision
    High Precision
    Certification
    CE, ISO 9001
    Condition
    New
    Speed of Table Longitudinal Movement
    5-25m/Min
    Table Size(Wxl)
    810X2200(mm)
    Max. Grinding(Wxl)
    810X2200(mm)
    Height of Machine
    2720/2920(mm)
    Weight
    12000kg
    Transport Package
    Carton
    Specification
    CE ISO
    Trademark
    G&G
    Origin
    China
    HS Code
    8458910000
    Production Capacity
    200/Per Month

    Product Description

    Min. Order Quantity: 1 Set/Sets
    Supply Ability: 500 Set/Sets per Month
    Port: Qingdao
    Payment Terms: T/T

    Quick Details
    Condition: New
    Type: Surface
    Grinding Machine
    CNC or Not: Normal
    Max. Grinding Diameter: 810
    Max. Grinding Length:2200
    Place of Origin: Shandong, China (Mainland)
    Brand Name: GNG
    Model Number: SG80220SD
    Voltage: 380V
    Power(W): 17000
    Dimension(L*W*H): 2000X2100X2175mm
    Weight: 3300kgs
    Certification: CE
    After-sales Service Provided: No overseas service provided

    Packaging & Delivery
    Packaging Details: Packed in playwood case
    Delivery Detail: 30-45days

    Specifications
    Worktable sizeL600X350
    Spindle power: 5.5KW
    SG SGA plc cnc column moving surface grinder
    Item/ModelUnitSG80220SD
    SG80220CNC
    table size(WxL)mm810X2200
    max. grinding(WxL)mm810X2200
    max. distance between spindle center line and worktable surfacemm820/1050(925)
    magnetic chuck size (optional equipment)mm800x1000x2
    speed of table longitudinal movementm/min5-25
    wheel head cross movingauto feedmm/t1-30
    rapid speedm/min0.05-2
    hand wheel feedmm/div0.005
    wheel head vertical movingauto feedmm/t0.005-0.05
    rapid speedmm/min0.05-2
    feed of handwheelmm/div0.005
    wheelspeedrpm960(1450)
    size(ODxWxID)mm500x75x305(450x75x203)
    motor of spindlekw18.5
    max. loading capacity of worktable with chuckkg2240
    total rated powerkw28.5
    height of machinemm2720/2920
    floor space(LxW)mm6000x3500
    gross weightkg12000
    CNC Surface Machine/Column Moving Surface Grinding Equipment

    CNC Surface Machine/Column Moving Surface Grinding Equipment
    CNC Surface Machine/Column Moving Surface Grinding Equipment
    CNC Surface Machine/Column Moving Surface Grinding Equipment
    CNC Surface Machine/Column Moving Surface Grinding Equipment
    CNC Surface Machine/Column Moving Surface Grinding Equipment
