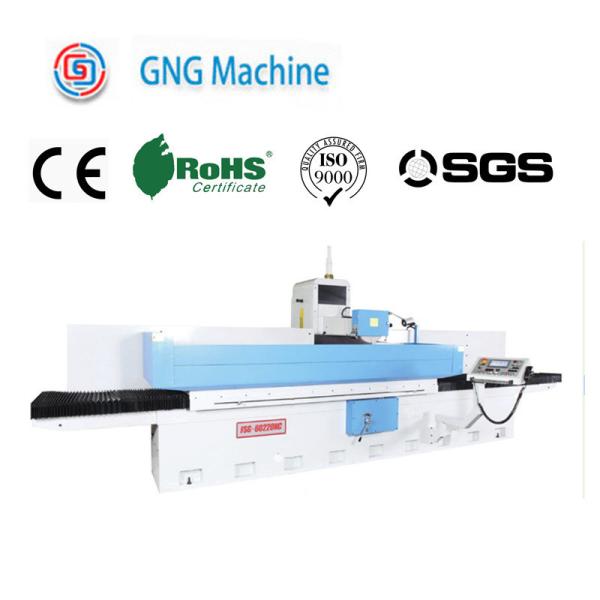

    Sg-60160 Surface Grinding Machine 600mm Column Surface Grinder

    Ask Lasest Price
    Supply Ability : 10sets/month
    Price : USD 2000-50500
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Sg-60160 Surface Grinding Machine 600mm Column Surface Grinder

    Column Moving Surface Grinder Sg-60160

    Company Info.

    Basic Info.

    Model NO.
    SG-60160
    Working Style
    Shaking
    Disc Diameter
    150mm
    Variable Speed
    With Variable Speed
    Table Size(mm)
    600X1250
    Max.Grinding Size Wxl(mm)
    600X1250
    Max.Distance From Table to Spindle Cente
    600mm
    Speed of Table Longitudinal Move
    5-25m/Min
    Auto Intermittent Feed
    1-20mm/T
    Transport Package
    Wooden Package
    Specification
    CE
    Trademark
    GNG MACHINE
    Origin
    China Weihai
    HS Code
    8460219000
    Production Capacity
    100sets/Month

    Product Description

    Column Moving Surface Grinder Sg-60160
    Table size: 600x1250 mm, three models to select: M,R,A.
    Please reply us your needing of optional accesories in the inquiry, thank you.

    Min. Order Quantity: 1 Set/Sets
    Supply Ability: 500 Set/Sets per Month
    Port: Qingdao
    Payment Terms: T/T
    Quick Details
    Condition: New
    Type: Surface
    Grinding Machine
    CNC or Not: Normal
    Max. Grinding Diameter: 610
    Max. Grinding Length: 1600
    Place of Origin: Shandong, China (Mainland)
    Brand Name: GNG
    Model Number: SGT60160SD
    Voltage: 380V
    Power(W): 17000
    Dimension(L*W*H): 2000X2100X2175mm
    Weight: 3300kgs
    Certification: CE
    After-sales Service Provided: No overseas service provided
    Packaging & Delivery
    Packaging Details: Packed in playwood case
    Delivery Detail: 30-45days
    Column Moving Surface Grinder Sg-60160
    Specifications
    Worktable sizeL610X1600
    Gringding height: 600/790/850/1050
    Spindle power: 5.5KW
    SG SGA plc cnc column moving surface grinder
    Item/ModelUnitSG60160SD
    SG60160CNC
    table size(WxL)mm610X1600
    max. grinding(WxL)mm610X1600
    max. distance between spindle center line and worktable surfacemm820/1050(925)
    magnetic chuck size (optional equipment)mm600x800x2
    speed of table longitudinal movementm/min5-25
    wheel head cross movingauto feedmm/t1-30
    rapid speedm/min0.05-2
    hand wheel feedmm/div0.005
    wheel head vertical movingauto feedmm/t0.005-0.05
    rapid speedmm/min0.05-2
    feed of handwheelmm/div0.005
    wheelspeedrpm960(1450)
    size(ODxWxID)mm500x75x305(450x75x203)
    motor of spindlekw18.5
    max. loading capacity of worktable with chuckkg1230
    total rated powerkw28.5
    height of machinemm2720/2920
    floor space(LxW)mm4700x3000
    gross weightkg8500

    Column Moving Surface Grinder Sg-60160
    Column Moving Surface Grinder Sg-60160
    Column Moving Surface Grinder Sg-60160
    Column Moving Surface Grinder Sg-60160
    Column Moving Surface Grinder Sg-60160
