    50HZ Cnc Sliding Table Saw Adjustable Speed Cnc Panel Saw Machine

    Ask Lasest Price
    Certification : CE, ISO
    Supply Ability : 100sets/month
    Price : USD 510-1300
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    50HZ Cnc Sliding Table Saw Adjustable Speed Cnc Panel Saw Machine

    Adjustable Speed 12" Woodworking Sliding Panel Saw

    Company Info.

    Basic Info.

    Model NO.
    MJ12-1600/2000/2600/2800/3200
    Precision
    Precision
    Certification
    CE, ISO
    Customized
    Customized
    Condition
    New
    Color
    Customized
    Voltage
    220V
    Power
    3HP
    Saw Wheel Diameter
    470mm
    Table Pivot Capacity
    -10o ~45o
    Transport Package
    Package
    Specification
    CE
    Trademark
    G&G
    Origin
    China Shandong
    HS Code
    84659200
    Production Capacity
    300/Per Month

    Product Description

    FOB Price: US $ 1, 100 - 1, 500 / Set
    Min. Order Quantity: 5 Set/Sets
    Supply Ability: 500 Set/Sets per Month
    Port: Qingdao
    Payment Terms: T/T

    Quick Details
    Condition: New
    Type: Table Panel Saw
    Use: Woodworking
    Style: Horizontal
    Place of Origin: Shandong, China (Mainland)
    Brand Name: GNG
    Usage: Woodworking
    Voltage: 220V
    Power(W): 3HP
    Certification: CE/RoHS
    Warranty: 1year
    After-sales Service Provided: No overseas service provided
    Packaging & Delivery
    Delivery Detail: 30-45days

    Specifications

    MODEL MJ12-1600/2000/2600/2800/3200
    DescriptionSLIDING SAW MJ12-1600/2000/2600/2800/3200
    TECHNICAL SPECIFICATIONS model NO. EXW QINGDAO price
    Motor power3000W
    Main table size385*800mm
    Extension table size (cast iron)440*800mm
    Extension table size(stell plate)440*800mm
    Rear extension table size310*500mm
    Sliding panel size1600*270mm
    Extension sliding panel size680*580mm
    Cross cut fence1200-2200mm
    Main blade size315*30*3mm
    Small blade size90*20*3mm
    Main blade speed4000rpm
    Small blade speed5800rpm
    Max cut depth100mm @90° 80mm @45°
    Max distance-blade to rip fence1220mm
    Sliding panel strock1600/2000/2600/2800/3200mm
    Packing size(mm)940x765x1000 940x785x1000 1600x766x1040 1600x766x1040 1600x766x1040 1660x250x320 2060x250x320 2660x250x320 2660x250x320 3260x250x320
    N.W/G.W210/240KGS 210/240KGS 240/300KGS 240/300KGS 240/300KGS 40/50KGS 45/55KGS 56/68KGS 58/70KGS 60/72KGS

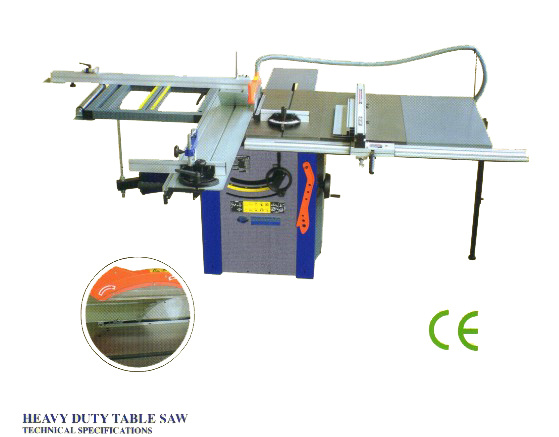

    Adjustable Speed 12" Woodworking Sliding Panel Saw
    Features
    1,Circular rod structure with chromium plating, compared with the past linear ball sliding table, has high positioning accuracy, long service life and promotes smoothness.
    2,Upgrade large motor, the machine uses pure copper motor, the default main motor is 4kw, the scoring motor is 0.75kw. If you need to cut solid wood and other plates, you can customize 5.5kw+1.1kw large motor.
    3,The ruler to adopt the European style large ruler, stable and non-displacement, effectively ensure the precision in the cutting process of the board.
    4,Main and scoring saw blade first by a scoring saw blade to open a line, followed by a main saw blade can be easily cut with high precision to prevent chipping burrs.
    5,The machine saw blade adopts an electric lifting system, which is more accurate than a hand-cranked saw blade.

    Application
    It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.

    This is our company's main product. This product has been selling well in Europe, North America, Australia and South America for more than ten years. We can adjust the details according to the different needs of our customers.


    Adjustable Speed 12" Woodworking Sliding Panel Saw
    Adjustable Speed 12" Woodworking Sliding Panel Saw
    Adjustable Speed 12" Woodworking Sliding Panel Saw
    Adjustable Speed 12" Woodworking Sliding Panel Saw
